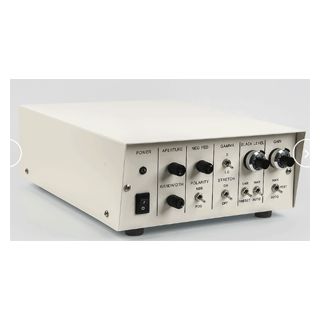

LSC-70 INFRARED CAMERA > DAGE-MTI

 LSC-70 Technical Specifications?

 Input Voltage?

 98 to 135 volts 50/60 Hz or 195 to 260 volts 50/60 Hz

 Input Power?

 18 watts @ 120 volts AC

 Vertical Sweep Rate?

 60 Hz standard or 50 Hz

 Horizontal Sweep Frequency?

 12 KHz to 35 KHz

 Scanning?

 2:1 Interlace, 525/60 or 625/50 standard

 Optional Scan Rates?

 2:1 Interlace, 559/60, 875/60, 945/60, 1025/60 (other scan rates available)

 Type of Sync and

 Blanking Waveform?

 EIA RS-170 standard, RS-330, RS-343 optional

 Image Tubes?

 Lead Sulfide

 Sensitivity?

 75 nanoamps of average tube signal current for 1 volt composite output

 Automatic Gain?

 Over 12 db at full bandwidth

 Video Output?

 Composite 1 Vpp, black to white .65 volts, .3v sync, black negative Polarity;

 source terminated 75 ohm. Dual isolated video outputs

 Geometric Distortion?

 Within major circle 0.5% ? Overall 1.0%

 Linearity Distortion?

 Horizontal: 0.25%

 Vertical:0.25

 External Lock?

 Adjustable 0 to + 12db at user specified peaking frequency

 Video Amplifier?

 Greater than 18 mHz bandwidth

 Gamma correction; switchable between 1 and .5

 Options?

 Crystal Control

 Computer Interface

 MECHANICAL?

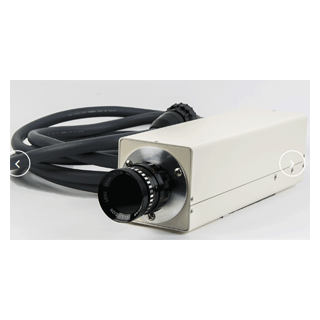

 Head (less lens)?

 2-7/8″ (H) x 2-3/4″ (W) x 9-1/4″ (L)

 Weight?

 2 lbs. 4 oz. (1 Klg)

 Lens Mount?

 C mount

 Camera Mount?

 Two 1/4″ x 20 tapped holes

 Type of Coaxial Connector?

 BNC
