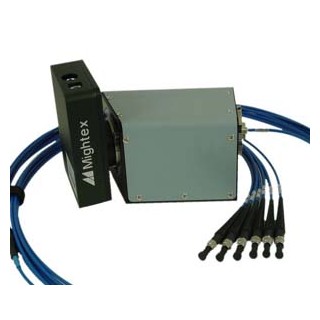

ISP-VIS-MC006-A Multi-channel spectrometer > Mightex

ISP-VIS-MC006-A Multi-channel spectrometer 요약정보 및 구매

제조사	Mighrtex
원산지	USA
브랜드	Mighrtex
모델	ISP-VIS-MC006-A
판매가격	전화문의
포인트	0점
배송비결제	주문시 결제

상품 정보

상품정보
사용후기 0
상품문의 0
배송정보
교환정보

상품 상세설명

FEATURES

Multiple (6) spectral channels in one compact package
No moving parts
High spectral resolution
High throughput
USB2.0 interface
No external power required
Trigger input
Full-featured SDK
GPIOs for interfacing with other equipment

APPLICATIONS

LED sorting
Display measurement
Lab research
Process control
Environment monitoring

Performance Specifications

Parameters	Specification	Unit
Model	ISP-VIS-MC006-A	-
Number of Channel	6	-
Optical Platform	F/2 High-resolution flat-field imaging spectrograph	-
Wavelength Range	380 ~ 780	nm
Resolution¹	1.2	nm
Order Sorting Filter	Long-pass	-
Entrance Slit	5 (also available: 10, 25, 50, 100, 200 or no slit)	μm
Input Fiber Connectors	SMA 905	-
Input Fiber NA	0.22	-
Detector	Sony ICX205AL	-
Pixel Number	1,392 x 1,040	-
Pixel Size	4.65 x 4.65	μm
Effective Pixel Well Depth²	200,000	electron
Signal-to-noise Ratio	1,000:1(at full scale)	-
A/D Resolution	12	bit
Integration Time	0.05 to 200,000	ms
Frame Rate	15 @ 8bit, 9 @ 12bit	fps
Hardware Gain	6 ~ 43	dB
GPIO	4 programmable digital I/Os	-
Trigger Input	Yes	-
Trigger Delay	< 25	μs
PC Interface	USB 2.0	-
Trigger/GPIO Interface	DIN8	-
PC Operating System	Windows 2000/XP/Vista/7/8	-
Power Consumption	1.8	W
Weight	840	g

(1) With a 10μm slit; (2) After binning.

Spectral Resolution(FWHM, nm) vs. Slit Width
Slit Width(μm)	5	10	25	50	100	200
ISP-VIS-MC006-A-XXX	1.1	1.2	1.7	2.4	4.0	7.1

NOTE: Entrance slits are fixed and are NOT interchangeable in ISP multi-channel spectrometer products.

Recommended PC System Configuration Processor:                    Pentium 4 1.8GHz or higher
Operating System:          Windows 2000, XP, Vista, Windows 7 and 8
RAM:                            512M or greater
Hard Disk Space:           50M for software installation, plus additional space for storing data

USB Host Controller: USB2.0 Enhanced Controller, which supports USB2.0 High-Speed. (480Mbps).

Standard Packing List:

1x spectrometer
1x USB cable
1x set of fiber ribbon
1x CD (containing User's Guide, and Windows-based application software with GUI etc)
