SL40-2 Spectrometer

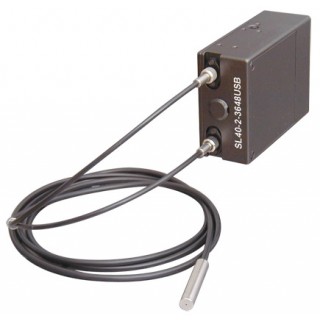

Spectrometers of SL40-2 series are small-size two-channel spectrum analyzers. SL40-2 comprises two independent spectral channels of spectrograph, which are arranged in one housing, and an embedded linear detector.

Each of the spectrographs is designed on the original optical schematic with aspheric mirrors and achromatic

objective lenses.

The spectrographs have a focal length of 40mm and aperture ratio 1/4.9. Diffraction gratings with different

numbers of lines can be used in any of the two channels to allow adjustment both of the spectral range to

be detected and the obtained spectral resolution.?

The focal plane of each spectrograph, where a spectrum is formed, coincides with the plane of photosensitive elements of the embedded linear detector. The spectrum length, produced by each channel is a half of the detector length. The linear detector provides simultaneous spectra detection of both spectrographs.

One two-channel optical fiber (one input and two outputs), two single channel optical fibers or condensers can be used for delivery of light to SL40-2. With the two-channel optical fiber the light beam is divided into two equivalent channels to enter the input port of each spectrograph. Light of the same light source is detected in two channels of the spectrometer. The use of two single-channel optical fibers allows the light from two different light sources to be simultaneously delivered to the device and be detected.

SL40-2 spectrometer is a compact, reliable and easy to operate spectrum analyzer. To run the spectrometer you just need to connect it to USB port of PC and start the control program "SpectraSP". The software "SpectraSP" is a powerful tool to carry out different analysis of the obtained spectra

Features

• aspheric collimator mirrors
• wide wavelength range from UV to near IR
• high spectral resolution with a small-size spectral device
• single-module unit with built-in detector

Applications

• wavelength control of tunable laser
• spectral analysis of different radiation sources
