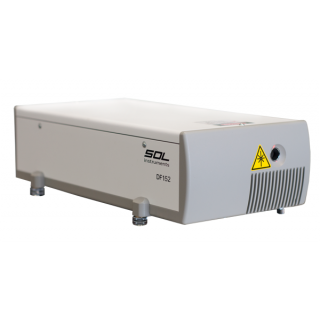

DF152 Solid-state pulsed laser > SOL

 Model?

 DF 152/2?

 DF 152/4?

 Pulse repetition rate:

 20 Hz

 20 Hz

 Energy per pulse:

 1064 nm

 140 mJ

 140 mJ

 532 nm

 80 mJ

 80 mJ

 355 nm

 20 mJ

 266 nm

 20 mJ

 Pulse to pulse energy stability for 98% of  pulses:

 1064 nm

 1 %

 1 %

 532 nm

 1.4 %

 1.4 %

 355 nm

 2.5 %

 266 nm

 3.2 %

 Pulse width:

 12 - 14 ns

 12 - 14 ns

 Beam divergence:

 < 1.2 mrad

 < 1.2 mrad

 Beam diameter:

 5 mm

 5 mm

 Jitter:

 <± 1.0 ns

 <± 1.0 ns

 Beam pointing stability:

 < 50 ?rad

 < 50 ?rad

 Diode lifetime:

 > 10⁹?

 > 10⁹?

 Power requirements:

 90-240 V, 115 W, 50-60 Hz

 90-240 V, 130 W, 50-60 Hz

 Overall size (L x W x H):

 Laser head:

 350 х 190 х 90 mm

 450 х 190 х 90 mm

 Power supply:

 364 х 147 х 391 mm

 364 х 147 х 391 mm

 Weight:

 Laser head:

 4.6 kg

 5.9 kg

 Power supply:

 5.8 kg

 5.8 kg
