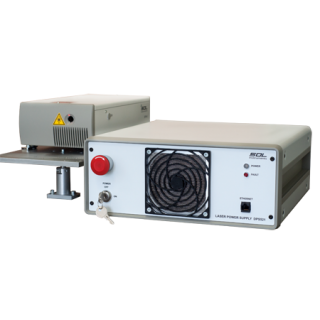

DF141 Solid state pulsed laser > SOL

 Model?

 DF141/2?

 DF141/4?

 Pulse repetition rate:

 20 Hz

 20 Hz

 Energy per pulse:

 1064 nm

 50 mJ

 50 mJ

 532 nm

 30 mJ

 30 mJ

 355 nm

 4 mJ

 266 nm

 2 mJ

 Pulse to pulse energy stability for 99% of pulses  (1064 nm):

 1064 nm?

 0.8 %

 0.8 %

 532 nm?

 1.2 %

 1.2 %

 355 nm?

 2.2 %

 266 nm?

 2.8 %

 Pulse width (1064 nm):

 10 - 12 ns

 10 - 12 ns

 Beam divergence:

 < 1.8 mrad

 < 1.8 mrad

 Beam diameter:

 4 mm

 4 mm

 Jitter:

 <± 1.0 ns

 <± 1.0 ns

 Beam pointing stability:

 > 10⁹?

 > 10⁹?

 Power requirements:

 90-240 V, 60 Wt, 50-60 Hz

 90-240 V, 70 Wt, 50-60 Hz

 Overall size (LxWxH):

 Laser head:

 332 х 170 х 90 mm

 430х 170 х 90 mm

 Power supply:

 364 х 147 х 391 mm

 364 х 147 х 391 mm

 Weight:

 Laser head:

 3.6 kg

 4.8 kg

 Power supply:

 4.8 kg

 4.8 kg
