LF121 Solid-state pulsed laser > SOL

 Energy per pulse:

 1064 nm

 120 mJ

 Pulse width (1064 nm):

 8 - 10 ns

 Pulse repetition rate:

 20 Hz

 Beam divergence (FW 0.86 M):

 1.2 mrad

 Beam diameter:

 5.0 mm

 Delay between pulses (adjustable):

 0 - 50 ?s

 Jitter:

 1.0 ns

 Pulse to pulse energy stability for 98%

 of pulses:

 ± 2.5%?

 Electrical requirements:

 220V +/-10% (110V),

 50-60 Hz; 900 W (max)

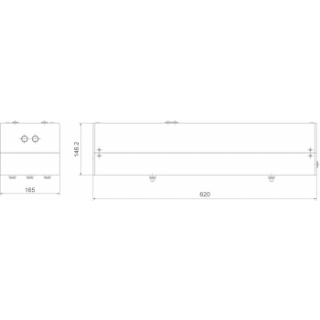

 Overall size (L х W х H)

 Laser head:

 620 х 165 х 146.2 mm

 Power supply

 475 х 483 х 261 mm

 Cooling system:

 490 х 483 х 177 mm
