Description

Utilising the successful pE-300 Series platform, the pE-340^fura is a bespoke LED Illuminator for Fura-2 ratiometric calcium imaging, which also supports everyday fluorescence microscopy in a compact and affordable package.

The 340nm and 380nm LED illumination system provides the optimum excitation wavelengths for Fura-2-based calcium imaging allowing high-precision, stable, high-throughput imaging with video-rate time resolution.

The images above show a field of cardiac myocytes (heart cells).  The cells were loaded with Fura-2 using standard conditions (i.e. incubation with 2 micromolar Fura-2 acetoxymethyl ester for 30 minutes, followed by an additional 30 minutes for de-esterification.

Images were obtained by Martin Bootman and Katja Rietdorf, School of Life, Health and Chemical Sciences, The Open University, UK.

Until recently, the response time of illumination systems for Fura-2 imaging have been limited to milliseconds due to mechanical switching of the wavelengths in arc lamp and monochromator systems.  However, the new pE-340^fura can be controlled via convenient BNC TTL connections for precise illumination control in as little as 20 microseconds.

Spontaneous Ca²⁺ events are induced in Mg²⁺-free HBS. (A) Representative trace from a single hippocampal neuron of Mg²⁺-free induced Ca²⁺ events imaged at 0.5 Hz and (B) representative trace from two hippocampal neurons of Mg²⁺-free induced Ca²⁺ events imaged at 24.39 Hz.

TINNING, P. W., FRANSSEN, A. J. P.M., HRIDI, S. U., BUSHELL, T. J. and MCCONNELL, G. (2017), A 340/380 nm light-emitting diode illuminator for Fura-2 AM ratiometric Ca²⁺ imaging of live cells with better than 5 nM precision. Journal of Microscopy. doi:10.1111/jmi.12616

Using the new pE-340^fura LED Illumination System, less Fura-2 dye can be loaded into the cells whilst still maintaining the same measured calcium concentration and good signal-to-noise ratio.  The reduction in required dye not only improves cell-viability due to reduced dye toxicity, but also results in a cost reduction per experiment.

Comparison of Ca²⁺ increases obtained from the application of trypsin (100 nM) to tsA-201 cells loaded with different concentrations of Fura-2 AM.

TINNING, P. W., FRANSSEN, A. J. P.M., HRIDI, S. U., BUSHELL, T. J. and MCCONNELL, G. (2017), A 340/380 nm light-emitting diode illuminator for Fura-2 AM ratiometric Ca²⁺ imaging of live cells with better than 5 nM precision. Journal of Microscopy. doi:10.1111/jmi.12616

Work by Sandrine Prost et al., from the University of Edinburgh, has shown that with independent wavelength controllable LED sources, signal-to-noise is dramatically improved over bulb systems and even over some available white wide spectrum LED sources.

High levels of autofluorescence and fast photobleaching of specific fluorescence when illuminating Qdots with Metal Halide.

Prost S et al (2016) Choice of Illumination System & Fluorophore for Multiplex Immunofluorescence on FFPE Tissue Sections. PLoS ONE 11(9): e0162419. doi:10.1371/journal.pone.0162419

There are two pE-340^fura configuration options:

Direct-fit for connecting to a microscopes ? by selecting from a range of microscope adaptors  which covers all current and most older models.  A simple once only adjustment will allow optimisation to the optical path of the microscope.

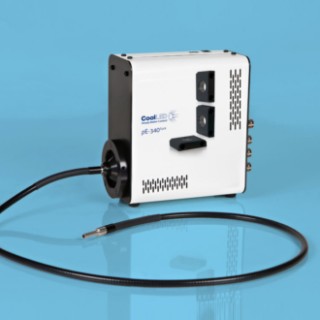

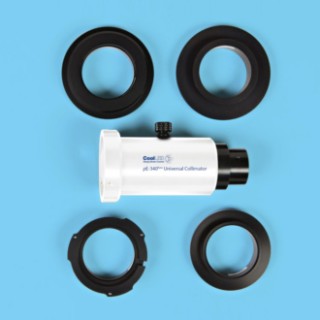

Liquid Light Guide with a fixed 3mm diameter, liquid light guide.  An optional pE-340^fura Universal Collimator can be specified in conjunction with a microscope adaptor if required, containing optics optimised to transmit the 340nm.

Features

The pE-340^fura offers:-

Specification

Power requirements
100-240V a.c. 50/60Hz, 1.4A

Power consumption
Standby Max 2W
1 band (white) at 100% intensity Max 24W
2 bands (340 + white) at 100% intensity Max 30W
3 bands (All) at 100% intensity 36W

Dimensions
pE-340^fura Light Source: 77mm(w) x 186mm(d) x 162mm(h) - Weight 1.40kg

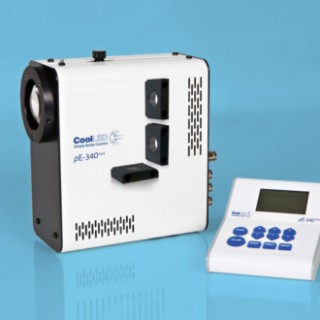

pE-340^fura Control Pod: 88mm(w) x 125mm(d) x 37mm(h) - Weight 0.32kg
pE-340^fura Power Supply: 167mm(w) x 67m(d) x 35mm(h) ? Weight 0.62kg

pE-Universal Collimator: 44mm(w) x 86mm(d) x 44mm(h) ? Weight 0.17kg

Environment & Safety
LED products are more sustainable and energy efficient than conventional illuminators. CoolLED's products have the following benefits:

* Mercury-free

* Energy Efficient: 80% less power

* Long lifetime (25,000 operating hours)

* No bulb replacements

* Reduced risk of eye damage

* Quiet operation

* No special disposal regulations or issues

Warranty
System = 24 months extendable by free product registration.
LEDs = 36 months (NB 340nm LED warranted for 3000 hours accumulated use)
