NP250-2M Spectrograph ?



NP250-2M is a spectrograph with two independent spectral channels.



Focal length of each channel is 250 mm. F/number of the device is 1/4.2, F/number of each channel is 1/6.1.



The radiation, after passing the entrance slit, is split into two independent spectral channels, representing a separate automated spectrograph, designed on the modified Hill scheme. Such an optical scheme allows to avoid spectra re-entrance from the diffraction gratings and mirrors, the parabolic mirrors allow to obtain high spatial and spectral resolution.

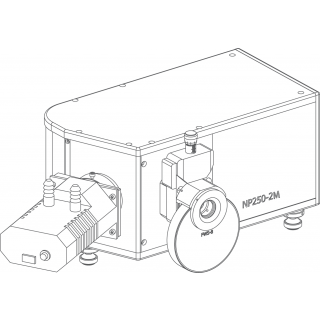

NP250-2M korpus





Features

  • Parabolic mirrors
  • Two independent spectral channels
  • High spatial resolution over the slit height
  • Great variety of diffraction gratings





Application

  • Multichannel spectroscopy
  • Measurements in UV, visible and IR spectral regions
  • Emission, fluorescent and Raman spectroscopy
  • Transmittance and reflectance measurement

NP250-2M optic layout ru





?

Optical system:



 Optical scheme:

 Modified Hill scheme, astigmatism-compensated,

 with two independent channels

 Usable wavelength range:

 185 nm ? 60 ?m (depends on the type of grating)

 F/number:



 - common:

 1/4.2

 - for each channel:

 1/6.1

 Focal length:

 270 mm

 Scanning range limited by the grating rotation angle

 (grating 1200 l/mm):

 0 - 1280 nm

 Main mirrors:

 Off-axis parabolic

 Stray light (20 nm from laser line 632.8 nm)

 2.5*10-5 ?





Astigmatism compensation:



 Horizontal magnification:

 1.09

 Vertical magnification:

 1

 Vertical spatial resolution:



 - at the center of the field:

 2 ?m

 - at 10 mm from the center of the field

 0.2 mm

 Focal plane

 25 х 8 mm





Drive:







 Motor:

 Manually

 Drive:

 Worm







* Optics:



 Reciprocal linear dispersion:

 2.91 nm/mm

 Spectral resolution:



 - PMT (slit width 10 ?m):

 0.07 nm

 - digital cameras (14 ?m pixel):

 0.08 nm

* For grating 1200 l/mm, wavelength 546 nm, detector pixel size 24 ?m



Gratings:



 Number of changeable gratings

 unlimited

 Number of simultaneously installed gratings

 2

 Size:

 50 х 40 х 10 mm

 Fixation:

 Positioner for 1 manually changeable grating

 Rotation:

 About the center of grating working surface, the orientation

 of the rotation axis coincides with orientation of grating lines

 * Grating positioning repeatability:



 - across the wavelength

 ±0.02 nm

 - vertical image position:

 ±0.2 nm

* For grating 1200 l/mm, wavelength 546 nm



?

Ports:



 Number of ports:

 1 input, 1 output



Spectral slits:



 Control:

 Manual, with micrometer screw

 Opening width:

 Smoothly regulated from 0 up to 2.0 mm

 Parallelism:

 ± 1 ?m

 Accuracy (slit width 1 mm):

 ± 10 ?m

 Repeatability:

 ± 1 ?m

 Reading accuracy (micrometer):

 2 ?m

 Height:

 10 mm; diaphragm-regulated from 0 up to 10 mm



Dimensions:



 Overall sizes (L x W x H):

 385 х 280 х 215 mm

 Optical height:

 111 - 120 mm

 Weight:

 10 kg
