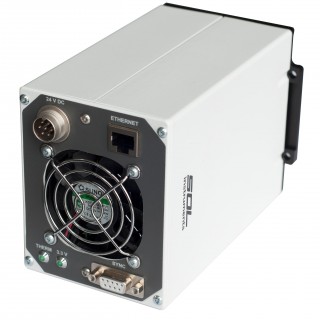

Digital camera HS 103H > SOL

 Characteristic?

 Value?

 Camera is specially adapted:

 for operation in the full vertical binning mode

 Readout mode:

 inverted (MPP (multi-pinned phase) Mode)

 Readout speed:

 125, 250, 500 kHz

 Sensor:

 matrix instrument with the CCD (charge-coupled device)  sensor S10420-1106 (Back-Thinned) by Hamamatsu,  specifically developed for application in spectrometers.

 Number of (pixels):

 2048 х 64

 Pixel size (H) x (V):

 14 х 14 μm

 Active area size (H) x (V):

 28.672 х 0.896 mm

 Nominal distance from a forward plane of the camera up to  photosensitive field of CCD:

 10 mm

 Exposure time:

 from 10 μs up to 7.5 h

 pre-exposure delay:

 from 1 μs up to 10 s

 post-exposure delay:

 from 1 μs up to 10 s

 Analog-digital converter (ADC):

 16 bit

 Analog-digital converter (ADC) gain floating in the range:

 from 1 up to 4.7

 ?Offset? signal setting

 (dark signal of the camera for the set parameters):

 from -100 % up to +100 %

 Camera sensitivity per 1 ADC count depending

 on amplification coefficient:

 from 0.9 up to 4.2 photons

 (at maximal sensitivity wavelength 500 nm)

 Dynamic range:

 not less than 7400

 External PC connection interface:

 ?Ethernet 100 Base-T? under the protocol TCP/IP

 Power supply:

 voltage direct current (VDC) 24 ± 5 V from the external  power adapter being a part of the delivery set

 Power consumption:

 not more than 15 В?А

 Overall sizes of the camera (L x D x H):

 100 х 164 х 105 mm

 Weight:

 1.5 kg
