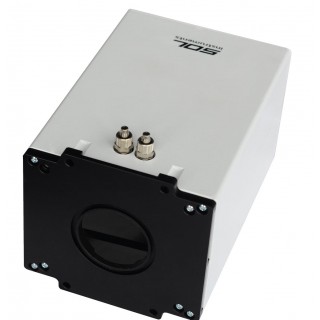

HS 101H-HR
HS 101H



Purpose

Cameras are aimed for operation as a registration system in the wavelengths range from 200 up to 1100 nm (depends on the model) as a part of optical spectral instruments controlled by a personal computer of IBM PC class. In the cameras image sensors of various types and sizes can be applied (see the table with technical characteristics).

Cameras can apply either one-step or two-step thermoelectric Peltier element cooling or no cooling at all (see the table with technical characteristics). Cameras HS 101H-HR provide high resolution due to the increased number of active pixels and their size being decreased down to 12×12 μm (number of pixels over the length ? 2048, over the width ? 122, 250 or 506).



hs 101hhr



?

Distinctive features

  • Embedded Personal Computer Pentium MMX.
  • High sensitivity in a broad spectral range.
  • Quantum efficiency of the image sensor is up to 90 % (for Back-Thinned technology sensors).
  • Low dark signal due to the thermoelectric cooling of a sensor (Peltier element cooling - compulsory air forced and/or water).
  • Low readout noise
  • Advanced opportunities for programming of operating modes of the cameras:

- binning and grouping;
- spectral binning for several spectral stripes;
- different regions of interest (ROI).

  • Various input/output synchronization modes.
  • Direct shutter control.
  • High-speed interface - 10/100 Ethernet connection.
  • On-board random access memory (RAM) up to 128 MB.
HS 101H graph

?

Application

In fluorescent spectrometers, spectrophotometers with inductive coupled plasma, Raman spectrometers during the scientific and laboratory investigations, at testing of semiconductors, low-light-level registration and also in other scientific and technical areas using spectrometric methods.

 Characteristic?



 Value?



 Series?



 HS 101H-HR?



 HS 101H?



 Cameras provide the following operating modes

 full image with the maximal resolution mode

 full vertical binning mode

 "one-track" mode

 "multi-track" mode

 mode of operation with the regions of interest (ROI)

 Cameras provide the following readout modes

 normal (Large Full Well Mode)

 inverted (MPP (multi-pinned phase) Mode)

 Sensor

 Charge-coupled device (CCD), types and models

 of sensors are given in the table.

 Nominal value of the distance from a forward plane

 of the camera up to photosensitive field of the CCD

 10 mm

 10 mm

 Readout speed

 125 kHz, 250 kHz, 500 kHz

 125 kHz, 250 kHz, 500 kHz,

  1 MHz

 Stability of keeping of the set temperature



 in the temperature range from minus 35 up to minus 20°С

 not worse than ± 0.5 °С

 not worse than ± 0.5 °С

 in the temperature range from minus 20 up to minus 40°С

 not worse than ± 1.0 °С



 Exposure time



 pre-exposure delay

 from 10 μs up to 7.5 h

 from 1 μs up to 10 s

 post-exposure delay

 from 10 μs up to 7.5 h?



 from 1 μs up to 10 s?



 Analog-digital converter (ADC) of the cameras

 16 bit

 16 bit

 Readout noise RSM at the minimal temperature of the

 sensor in Full Image with the maximal resolution mode

 not more than 12 ADC counts

 (with ADC by Texas Instruments)

 not more than 6 ADC counts (with ADC by DATEL)

 Camera dynamic range

 not less than 13 000

 (with DATEL)

 not less than 10 000

 (with DATEL)

 External PC connection interface

 ?Ethernet 100 Base-T?

 under the protocol TCP/IP

 ?Ethernet 100 Base-T?

 under the protocol TCP/IP

 Power supply of cameras is realized from the external

 power adapter being a part of the delivery set

 voltage direct current

 (VDC) 24 ± 5 V

 voltage direct current

 (VDC) 24 ± 5 V

 Overall sizes of the cameras (L x D x H)

 not more than

 100 x 164 x 105 mm

 not more than

 100 x 164 x 105 mm

 Weight

 not more than 2.0 kg

 not more than 2.0 kg
