F-matcher 1xVIS > SOL

F-matcher 1xVIS

• Magnification ? 1 fold

• Front and back operating parts ? 21 mm

• Spectral range ? 400…..2500 nm

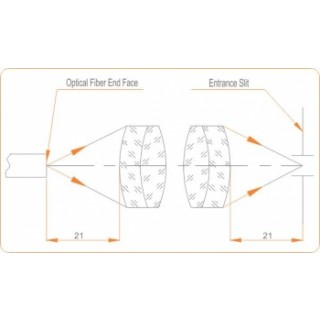

Constructively simple and easy in operation this condenser collects radiation from the object (maximal angle of coverage is 28.8 degrees) or optical waveguide (maximal aperture Na=0.15) and transfers it to the entrance slit of the spectral device without losses and stray light. Two achromatic in a wide spectral range objectives allow obtaining a high-quality image of the waveguide end in the plane of knife blades of the entrance slit of the spectral device. Replaceable diaphragm prevents propagation of the stray light. The peculiarity of this condenser is its operating entrance aperture Na=0.15, allowing operation with the waveguides having small aperture (Na=0.12). It is constructively possible to mount a filter wheel with light filters.

Condenser F-matcher 1xVIS is optimal for the delivery of radiation from the small-aperture waveguide (Na=0.12) to the monochromator-spectrograph MS350 Series.

?
