F-matcher 1xUV

• Magnification ? 1 fold

• Front operating part ? 44 mm

• Back operating part ? 44 mm

• Spectral range ? 220…..2500 nm
  (and up to 3200 nm on a special order)

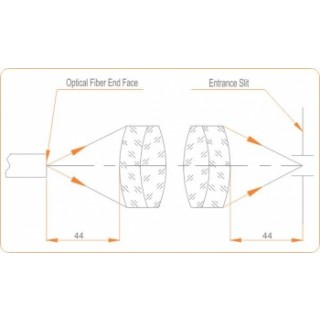

This condenser collects radiation from the object (maximal angle of coverage is 17.5 degrees) or optical waveguide (maximal aperture Na=0.13) and transfers it to the entrance slit of the spectral device without losses and stray light. Two achromatic in a wide spectral range objectives allow obtaining a high-quality image of the object or optical waveguide end in the plane of knife blades of the entrance slit of the spectral device. Replaceable diaphragm prevents propagation of the stray light. It is constructively possible to mount a filter wheel with light filters.

The peculiarity of this condenser is its operating entrance aperture Na=0.13, allowing operation with the waveguides having small aperture (Na=0.12).

?
