MC 211IR Spectrophotometer

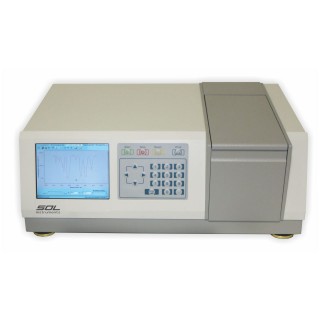

Up-to-date spectrophotometer for UV-VIS-NIR spectrum ranges (from 190 up to 1100 nm) is aimed for solving a

wide scope of routine and investigation tasks connected with spectra registration and processing,

quantitative and multi-element analysis as well as with kinetic measurements.?



  • Double monochromator provides low level stray light and the highest precision of measurements.
  • Modern optical layout allows investigation of small-size samples or micro-samples.
  • Embedded powerful Pentium PC allows detailed processing of measurements data and data archiving
  • Embedded 6.4" VGA TFT full-color liquid-crystal display (LCD).
  • A wide range of peripherals which can be connected to the device: a "mouse" manipulator, keyboard, printer, external display, external computer.
  • Direct connection to a company local network and to the World Wide Web.
  • Module design of a cell compartment allows the substantial extension of functional capabilities of the spectrophotometer (for example, measurement of sample reflectance, polarization investigations, etc.).





Fig.1. Absorbance spectra with set markers


Measuring functions

  • Measurement of absorption, transmission and reflection spectra.
  • Measurement of optical density, transmittance and reflectance on the fixed wavelengths.
  • One-, two- and three- wave measurements of concentration, multi-wave measurements.
  • Kinetic measurements both on one and several wavelengths.
  • Concentration measurement with pre-programmed techniques.
  • Calculation of trichromatic and chromaticity coordinates in different colorimetric systems CIE(CIE of 1931 and CIE 1964) for various types of sources (A, B, C and D65) and color distinctions calculation according to CIE 1976. (CIELAB) ? at operation with the external software.
  • Storage of measurement data and reports preparing.



Fig.2. End-point measurements at selected wavelength


Application area

Spectrophotometer is a multi-purpose instrument for application in all areas using photometric investigation methods. It can be applied in ecological and environmental laboratories, factory in various industry branches (e.g. optical, chemical, pharmaceutical, food ,etc.).




Fig.3. Measuring the concetration by the programmed methodic


Standard delivery set:

  • cell holder with optical path length from 10 up to 100 mm.
  • 2 quartz cell with optical path length of 10 mm.
  • 100 standard disposable polystyrene cells with optical path of 10 mm.
  • keyboard.
  • "mouse" manipulator.
  • a set of connecting cables.

Parameters Value
 Optical layout:  single-beam with reference channel
 Monochromator:  double with dispersion summation
 Wavelength range:  from 190 up to 1100 nm
 Monochromator spectral slits:  fixed, 2 mm width
 Bandwidth:  3 nm
 Scanning speed:  from 3 up to 5000 nm/min
 Scanning mode:  turbo, fast, medium, slow
 Minimal spectral scanning step:   0.1 nm
 Wavelength absolute error:   ± 0.5 nm
 Wavelength reproducibility:  ± 0.2 nm
 Level of stray light at 220nm, 340nm and 400 nm:  not more than 0.05 %
 Range of absorbance measuring, D:  - 3 до 3 B
 Photometric accuracy:
 - transmittance measurements, T  ± 0.05 %
 (T=10 % wavelength 540 nm)
 - absorbance measurements, D  ± 0.002 B
 (D=1 B wavelength 540 nm)
 Photometric reproducibility:
 - transmittance measurements, T  ± 0.005 %
 (T=10 % wavelength 540 nm)
 - absorbance measurements, D  ± 0.0002 B
 (D=1 B wavelength 540 nm)
 Zero drift (at 500 nm):  ± 0.0005 B/hour
 Light sources:  deuterium and halogen lamps
 Light sources switching:

 automatic, within 330 ? 365 nm range upon a

user's choice

 Photodetectors:  silicon photodiodes
 Inner dimensions of cell compartment:  120 x 205 x 105 mm
 Sample optical path length:  up to 120 mm
 Ports for additional external devices connection:  Ethernet (2 slots), USB (2 slots),
 RS 232, VGA, PS2 keyboard, PS2 "mouse" manipulator
 Dimensions:  516 x 352 x 198 mm
 Weight:  18 kg
 Power requirements:  from 90 up to 240 W, 50-60 Hz, 100 VA
