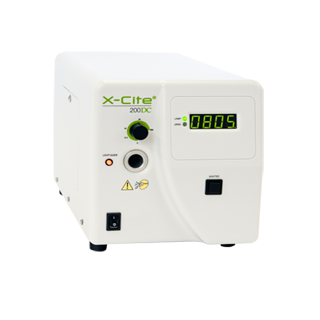

X-Cite 200DC (DC 광원) > X-cite

 FEATURES

 BENEFITS

 DC lamp

 Exceptional short and medium term intensity stability

 Adjustable iris, 0-100%

 Intensity control to avoid photobleaching and optimize illumination levels

 Internal high speed shutter

 Limits photobleaching and mechanical vibration transferred to microscope during  automated imaging for better image quality

 Liquid Light Guide

 Superior illumination uniformity and elimination of heat transfer to microscope

 Automatic Light Guide Detection

 Ensures proper/complete insertion of light guide to optimize performance and extend

 lifetime

 Pre-aligned 2000 hour lamp

 Easy lamp replacement with no alignment required

 Intelli-Lamp® Technology

 Maintains optimum lamp temperature; Monitors lamp hours

 Technical SPECIFICATIONS

 Includes

 Lamp module, liquid light guide with adaptor, foot pedal, grounded and shielded  power cord, user guide (on CD), quick-start guide

 Lamp

 200W Mercury Vapor Short Arc, DC

 Lamp Life

 2000 hours guaranteed, 2500 hours typical

 Adaptors

 Compatible with microscopes from all major manufacturers

 Filter

 Bandpass, 340-800nm, non-removable

 Shutter

 Front panel button, foot pedal, TTL input/sync output

 Response time: 5-6 ms trigger to open/close (TTL)

 Iris

 ND (Neutral Density) mesh, manual dial control, continuous non-detent motion from

 0-100%

 Warm-up Period

 4 minutes (typical)

 Panel Controls

 Power on/off, shutter open/close, manual iris adjustment dial

 Panel Display

 Accumulated lamp hours, status messages

 Panel Status Indicators

 Lamp on, shutter open, light guide insertion

 Power Supply

 Power Factor Corrected, Universal Input

 Input Voltage

 100-240VAC, 50/60Hz

 Current

 3.5A max at 120VAC, 2.0A max at 240VAC

 Input Surge

 50A max (cold start)

 Fuse Rating

 Dual fuse: each rated at F5.0A 250V, 5x20mm type

 Dimensions

 13.5” x 7” x 8”

 34cm x 18cm x 20cm

 Weight

 10.8lbs / 4.9kg

 Certifications

 CE marked, certified to IEC, Canadian and US Standards, RoHS compliant

 Warranty

 1 year (excluding lamp and light guide)

 기능

 장점

 DC 램프

 안정적인 광원

 조리개 조절, 0-100%

 빛의 밝기를 조절하여 photobleaching을 최소화

 내장 고속 셔터

 현미경의 photobleaching 과 vibration을 최소화

 액체타입 광가이드

 뛰어난 조명의 균일화와 현미경에 열 전달을 제거

 Automatic Light Guide Detection

 램프 수명을 연장

 Pre-aligned 2000시간 램프

 얼라이먼트가 필요없는 쉬운 램프 교체

 Intelli-Lamp® 기술

 최고의 램프 온도를 유지한다; 램프시간을 보여준다

 기술 사양서

 포함 사항

 램프 모듈, 액체 광가이드와 어댑터, 밟기판, 접지와 차폐된 전력코드, 사용자

 가이드(on CD, 빠른 시작 가이드

 램프

 200W Mercury Vapor Short Arc, DC

 램프 수명

 2000시간 보장, 평균 2500시간

 어댑터

 모든 메이저 생산 회사들의 현미경과 호환 가능

 필터

 주파수폭, 340-800nm, 비 분리형

 셔터

 전면 패널 버튼, 밟기판, TTL input/sync output

 응답 시간: 5-6 ms trigger to open/close (TTL)

 조리개

 ND (Neutral Density) mesh, manual dial control, continuous non-detent motion from

 0-100%

 준비 시간

 4 minutes (typical)

 패널 제어

 Power on/off, shutter open/close, manual iris adjustment dial

 패널 화면

 Accumulated lamp hours, status messages

 패널 상태 표시

 Lamp on, shutter open, light guide insertion

 전력 공급 장치

 Power Factor Corrected, Universal Input

 입력 전압

 100-240VAC, 50/60Hz

 Current

 3.5A max at 120VAC, 2.0A max at 240VAC

 Input Surge

 50A max (cold start)

 퓨즈 용량

 이중 퓨즈: 각 퓨즈의 용량 F5.0A 250V, 5x20mm type

 크기

 13.5” x 7” x 8”

 34cm x 18cm x 20cm

 무게

 10.8lbs / 4.9kg

 인증 기관

 CE marked, certified to IEC, Canadian and US Standards, RoHS compliant

 품질 보증

 1년 (램프와 광가이드는 미포함)
