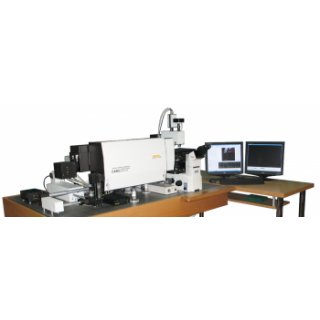

3D Scanning Laser Spectrometer Confotec™ CARS




Multifunctional - Confotec CARS combines:

  • CARS scanning microscope
  • Raman \ luminescent scanning confocal microscope
  • Conventional scanning confocal laser microscope

Confotec CARS



Multi-channel - five channels for simultaneous high-speed measurements:

  • F-CARS
  • E-CARS & Raman
  • reflected laser radiation
  • transmitted laser radiation
  • luminescent laser radiation

?

Advantages of CARS method

  • high sensitivity: CARS generates more intensive and directed signals in comparison to spontaneous Raman microscopy;
  • anti-Stokes CARS signal has frequency exceeding pumping waves frequencies and is detected in a spectral range free from the stray light of Stokes luminescence;
  • CARS signal is registrated only in a focus where excitation intensity is the highest. It allows imaging with a high spatial resolution using non-confocal pinholes and also performs 3D layer-by-layer scanning with minimal neighboring layers influence on measuring results;
  • spectral resolution of CARS signal is defined only by the width of pumping lasers lines, what simplifies spectral measurements, as detection of CARS signals can be performed without any spectral instrument;
  • CARS signal is proportional to the squared molecule concentration, it allows using CARS (along with the selectivity and noninvasivity of the method) for quantitative measurements of chemical substance concentration in a sample;
  • minimal invasive (nondestructive) CARS method for biological samples. Due to the high sensitivity of CARS method molecules in living cells can be detected without fluorescent markers.



Features

High spatial resolution:

CARSXYZ < 0.7 μм
RamanXY < 300 nm
Z < 700 nm



Wide spectral range:

CARS985 ? 5000 cm-1
Raman75 ? 6000 cm-1



High spectral resolution:

CARS7 ? 8 cm-1
Raman0.25 cm-1



Simultaneous / multifunctional analysis:

  • high-speed imaging by CARS signal (no preliminary additions to the samples)
  • confocal Raman imaging
  • confocal fluorescence imaging including two-photon (or multi-photon) emission
  • confocal imaging in the reflected laser radiation
  • high-contrast imaging in the transmitted laser radiation
  • visualization of a surface profile by means of the second harmonics generation signal



Three types of CARS measurements:

  • F-CARS
  • Е-CARS
  • P-CARS



Five independent speed channels for simultaneous detection up to four 2D and 3D images:

  • F-CARS: CARS signal in forward direction
  • E-CARS & Raman: CARS signal in backward (EPI) direction/ Raman signal
  • Reflected: reflected laser radiation signal
  • Transmitted: transmitted laser radiation signal
  • Luminescent: transmitted laser radiation signal
  • Polarization control over the excitation and detection
  • Mono-block laser system for CARS signal excitation
  • Additional laser 633nm for excitation of a conventional one-photon fluorescence and spontaneous Raman scattering
  • PC-controlled: switching of modes of measurement is performed by automatic switching of the components inside the system



Three scanning modes:

  • Laser beam scanning over fixed sample surface with XY scanner
  • Sample transfer by means of XY automated stage relative to the fixed laser beam
  • Multiplexed mode for panorama imaging with a high speed and high spatial resolution: XY scanner + automated stage

Highly-precise calibration over the wavelengths: better than ±0,002nm due to an embedded calibration lamp as a source of reference lines for automated operative calibration of the monochromator-spectrograph.
Block, rigid framing provides a high temporal and thermal stability.



1 Polisteren balls

Polysterene balls of various diameter (F-CARS, 3045 cm-1)



2 structure-of-liquid-crystal

3D CARS image of liquid crystal 8CB structure on resonant frequency 2236 cm-1



3 image-growing-cells

Multimodal CARS/TPEF image of growing cancer cells HeLa: DNA/RNA/Proteins/Lipids colored



4 selective- imaging

Selective imaging of MIA-PaCa pancreatic human cancer cell for resonance 2845 cm -1 C-H bound (C-H aliphatic stretch). Selective lipids visualization.

5 selective- imaging

3D image of a cell

References:
Dr. A. V. Kachynski,
The Institute for Lasers, Photonics,
and Bio-photonics,
State University of New York at Buffalo




Intuitive software NanoSP®:

  • Online control over the system parameters
  • All-round automation : measuring modes switching by automated switching of the components inside the system; control over the shutters for wavelength selection of the excitation laser; control over the polarization in the excitation/registration channel; selection of a grating, setting of a central wavelength and selection of an output port of the monochromator-spectrograph, adjustment of a pinhole position , etc.
  • Confocal 2D and 3D imaging: scanning, accumulation and data storage
  • CARS image, Raman and luminescence spectra
  • Various calibration methods of spectra, also by means of the embedded calibration lamp as a source of reference lines
  • 2D / 3D image of data
  • Image processing:
    - image correction
    - metric and statistic image processing, free sections
    - digital filtration, image resize and rotation
  • Spectra processing:
    - background correction (background subtraction)
    - mathematics operations: addition, subtraction, division, multiplication ,etc.
    - smoothing with several techniques
    - searching and definition of spectral lines peaks
  • Scanning modes:
    - Point
    - XY
    - XZ
    - YZ
    - XYZ
  • Scanning techniques:
    - galvanoscanner: 2D high-speed images
    - galvanoscanner + Piezo-Z scanner: 3D high-speed images
    - automated stage: 2D images
    - automated stage + Piezo-Z scanner: 3D images
    - galvanoscanner + automated stage: 2D panorama images
    - galvanoscanner + automated stage + Piezo-Z scanner: 3D panorama images



Application

  • Nanobiotechnology: real-time noninvasive analysis of biological samples (cells and components of living cells) with high spatial resolution
  • Micro- and nanotechnology investigations of properties of non-biological microstructures: semiconductors, liquid crystals, polymers, pharmaceutical components, micro- and nanoparticles
 Common specifications

 Spatial XYZ resolution of CARS signals  < 0.7 μm
 (Objective lens: 60x, NA=1.2, watter immersion):
 Spatial resolution of Raman signals  XY: < 300 nm

 (excitation wavelength 633 nm; objective lens: 60х, NA=1.2,

    watter immersion):

 Z:< 700 nm
 Spectral detectable range:  CARS signals:            985 ? 5000 cm-1
 Raman signals:          75 ? 6000 cm-1
 Spectral resolution:  CARS signals:                7-8 cm-1

 Raman signals:              0.25 cm-1

 (grating 75 l/mm Echelle);

                                    0.6 cm-1

 (grating 1800 g/mm)

 Scanning range (fast scanning mode, 60x lens)  XY: 225 х 225 μm
 Z:   80 μm
 Control and automation:  Fully motorized

 Optical microscope

 Type:  inverted
 Model:  Nikon Ti-U
 Stage:  motorized
 - travel range:  114 х 75 mm
 - accuracy (for 1 mm traveling):  0.06 μm
 - XY repeatability:  ± 1 μm
 - minimal step:  0.02 μm
 Micro- objective lens:  60 х NA-1.2 water immersion
 20 x NA-0.45
 Z-scanner:
 - type:  piezo scanner
 - lens movement range:  80 μm
 - minimal step:  50 nm
 - Reapetability:  < 6 nm
 Illuminator for reflection mode:  Halogen lamp 100 W
 Illuminator for transmission mode:  LED
 Laser input port:  motorized triple turret
 High resolution digital video camera:
 - type:  digital color CCD camera
 - sensor:  1/2", 2048 x 1536 pixeles
 - ADC:  10 bit,  12 frames per min

 CARS excitation laser system


 Single module optical parametric laser

system consisting of:


 Picosecond solit state Nd:YVO4 laser
 Output wavelength:  1064 nm
 Pulse duration:  6.5 ps
 Output power:  6 W
 Pulse repetition rate:  85 MHz
 Mode composition:  TEM00
 Beam quality (М2):  < 1.5
 Beam diameter:  2 mm
 Tunable SOPO
 (Synchronously pumped Optical Parametrical Oscillator)
 Wavelength tuning range:  690 - 990 nm
 Output power:  > 400 mW (at 800 nm)
 Pulse duration:  5 - 6 ps
 Pulse repetition rate:  85 MHz
 Polarization:  horizontal
 Mode composition:  TEM00
 Beam quality (М2):  < 1.2
 Beam diameter:  2 mm
 Built-in delay tuning optical line

 Laser for Raman spectroscopy

 Laser type:  cw HeNe
 Wavelength:  632.8 nm
 Average output power:  > 10 mW
 Polarization:  linear
 Beam diameter:  0.65 mm
 Beam divergence:  < 1.24 mrad

 Laser beam convergence and appointment unit

 Laser shutter:  3 pieces (Nd:YVO4 laser, SOPO and HeNe laser)
 Polarizer:  2 pieces (Nd:YVO4 laser and SOPO)
 Wavelength plate λ/2  2 pieces (Nd:YVO4 laser and HeNe laser)
 Variable telescope:  3 pices (Nd:YVO4 laser, SOPO and HeNe laser)

 Main optical unit

 Optimized optics for spectral range:  400 - 1100 nm
 Polarization analyzer:  Glan-Teylor prism
 Laser beam attenuator:  veriable neutral density filter 0 - 3D
 Pinhole lens positioner:  three-axis (X, Y, Z)
 CARS, Raman, fluorescence filters positioner:  five- position
 Posotioner of dihroic mirrors:  six- position

 Imaging monochromator/spectrograph MS5004i

 Focal length:  520 mm
 F number (input):                  9.8
 Horizontal magnification: 1
 Vertical magnification: 1
 Vertical spatial resolution:  < 20 μm
 Flat field size:  28 х 5 mm
 Stray light  1 х 10-5
 ( 20 nm from 633 nm laser line)
 Difraction gratings unit:  4-position motorized grating turret
 Spectral resolution  0.01 nm (Echelle grating 75 l/mm)
 (wavelength 633 nm, CCD pixel size: 12x12 μm)  0.025 nm (grating 1800 l/mm)
 Entrance spectral slit  motorized confocal pinhole,
 continuously adjustable from 0 to 1.5 mm
 Output spectral slit:  motorized, width from 0 to 2 mm (continuously  adjustable)
 Ports:  1 input, 2 output
 Detector (Raman, E-CARS, fast measurements)

 Hamamatsu Photosensor module

 H7844 (with TE cooling)


 Monochromator for fluorescence measurements (integrated with MS5004i)

 Focal length:  100 mm
 Input spectral slit:  motorized confocal pinhole
 Output spectral slit:  fixed, width 4.2 mm
 Difraction grating:  600 l/mm
 Spectral range:  400 - 920 nm
 Linear reciprocal dispersion:  13 nm/mm
 Detector

 Hamamatsu Photosensor module

 H7844 (with TE cooling)


 Spectral CCD camera (Raman, E-CARS)

 Type:  digital CCD camera
 Photosensor:  back-thinned CCD sensor 2048 х 122 pixels
 Pixel size:  12 х 12 μm
 Photosensitive area:  24.576 х 1.464 mm (length х heigh)
 Spectral sensitivity range:  from 200 to 1100 nm
 Cooling with temperature stabilization:  two-stage Peltier (TE) cooling down to ? 45 °С
 ADC digitization:  16 bit
 Sensitivity:  1 photon for 1 ADC count (at 650 nm)
 Dinamic range:  at least 10 000

 Fast scanning unit (X, Y)

 Scanners:  Galvano-mirror scanners (X, Y)
 Scanning model:  raster high speed and start-stop mode
 Positioning accuracy:  < 30 μm
 Scanning area:  225 μm х 225 μm (objective lens 60Х)
 Full frame scanning speed:  4 s/frame: 1000 х 1000 points

 Laser confocal microscope unit (Reflected)

 Prepinhole lens positioner:  three -axis (X, Y, Z)
 Confocal pinhole:  motorized confocal pinhole,
 continuously adjustable from 0 to 1.5 mm
 Detector:  Hamamatsu Photosensor module H6780-01

 F-CARS and transmitted signal registration system

Polarization alanyzer:  Glan-Teylor prism
 F-CARS filters positioner:  4-position, motorized
 F-CARS signal registration detector:

 Hamamatsu Photosensor module H7844

 (with TE cooling)

 Transmitted signal registration detector:  Hamamatsu Photosensor module H6780-01

 Registration and processing control unit

 Number of registration channels: 5
 Number of simultaneously registered channels:  up to 5
 PC connection interface:  Ethernet 100 Base-T (TCP/IP protocol)

Optical table

All components of the system based on the optical plate with the pneumatic vibrated insulating legs.

 shema specification CARS?
