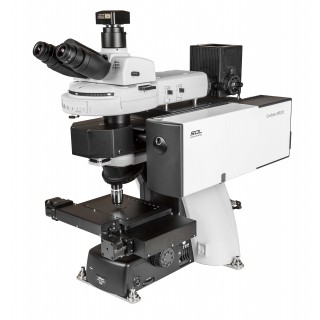

Confotec® MR200 - Confotec MR200 is a compact and price-effective Raman microscope for routine measurements and scientific research. The true confocal optical layout with a set of automatically switchable confocal diaphragms (pinholes) allows conducting a spectral аnalysis of microparticles or Raman imaging of macro-objects with high spatial resolution.
The most advanced Raman microscopes have successfully combined the latest innovations in optoelectronics and 25-years experience in spectrosсopy and manufacturing of SOL instruments.
All Confotec® MR Raman systems are based on the research grade upright microscope NikonTM Ni. Standard modules for the implementation of operating modes in transmitted light, polarization and phase contrast, DIC, an attachment for epi-fluorescence, etc. can be installed through the use of the NikonTM Ni microscope.
|Microscope:||The upright Nikon Ni microscope with a turret for 6 micro-objectives, with a diode white light illuminator for operation in bright field mode in reflected light and a color video camera*. A set of lenses is selected individually depending on a type of a sample.|
|Edge/Notch-filters module, Raman spectra measurement range:||Automatically switchable Edge filters***, operational ranges:|
for 532 nm laser from 60 cm-1 to 4500 cm-1
for 633 nm laser from 60 cm-1 to 4500 cm-1
for 785 nm laser from 50 см-1 to 2900 см-1
|Spectrometer unit:||High throughput scanning spectrometer with optics for the range 400-1100 nm**|
|Diffraction gratings:||Up to 4 gratings installed in an automated precision turret: 2400 lines/mm, 1800 lines/mm, 1200 lines/mm, 600 lines/mm. The Echelle grating is optional.|
|Detector:||Highly sensitive BackThinned CCD detector with thermoelectric cooling.|
Spectral sensitivity range is 200-1100 nm
Number of pixels: 2048х122, pixel size is 12 microns,
cooling to -40°С or FI CCD detector 1600х200 with cooling to -60°С
|Spectral resolution:||1.4 cm-1 (0,7 cm-1/pixel) with grating 2400 g/mm or to|
0,3 cm-1 with Echelle grating (for laser 532 nm)
|Confocal pinhole:||Automated interchangeable confocal diaphragm module (pinholes): 20 µm, 30 µm, 40 µm, 50 µm, 70 µm, 100 µm, 1000 µm|
|Lasers:||Up to 3 lasers with wavelengths 405, 488, 532, 633 and 785 nm can be installed simultaneously and switched automatically***|
|Scanning of samples:||Precision automated XY (XYZ) stage with a scanning range of 100х75 mm and min step 100 nm (XY) & 20 nm (Z) or ХУ (XYZ) automated stage with a scanning range 115х75 mm with encoders|
|Autocalibration and validation:||Built-in Ne lamp for automatic calibration|
|Standard warranty:||Warranty period is 24 months. Guaranteed lifetime of lasers is 10,000 hours.|
