상품 정보

상품 상세설명

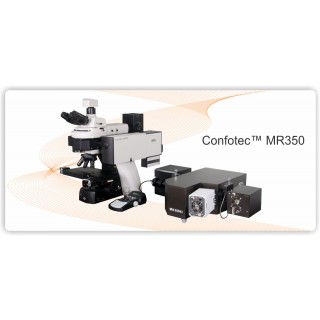

Confotec MR 350



Compact Raman confocal microscopes  Confotec™ MR350, Confotec™ MR520 and Confotec™ MR750
are intended for micro spectroscopic measurements with the high-end system capabilities.

All models have a rigid design that does not require adjustments and have both high sensitivity and high spatial resolution.

Spectral measurements are provided by a highly automated 350, 520 or 750 mm focal length Imaging monochromator-spectrograph with a motorized 4-position grating turret.

Performance capabilities, high reliability and compact design of confocal microscopes Confotec™ MR350, Confotec™ MR520, Confotec™ MR750 allow researchers to tackle different, crucial tasks in science and industry.

Semiconductors, liquid crystals, polymers, pharmaceutical and biological substances, single molecules and nanoparticles can be objects of research.

We offer 5 configurations of a Confotec™ Raman confocal microscope to realize optimal solutions for your needs.



Features

  • Modular design (the main Raman optical unit with a built-in laser is attached to the microscope, and the fiber coupled spectrograph can be arbitrarily located on a desktop or optical table)
  • Rigid design provides high thermal and temporal stability of spectral measurements, no pre-adjustment is needed
  • Nondestructive analysis, no special requirements for sample preparations
  • Two automatic switchable lasers with different wavelengths allow to measure  Raman spectra of  various samples without  influence of fluorescence background
  • Highly automated 350, 520 or 750 mm focal length Imaging monochromator-spectrograph with a motorized 4-position grating turret provides spectral measurements
  • Only some sample areas are located in focus due to limited confocal depth of field. A high-speed reflected unit allows you to quickly find a sample focus areas and use them for Raman measurements. This provides a significant gain in time and allows you to immediately use a high numerical aperture objective to record high spatial resolution Raman maps
  • High speed simultaneous Raman and Rayleigh sample imaging using PMT detectors and a XY galvano-mirror scanner
  • High speed and high spatial resolution ultra-wide panoramic imaging (Raman and Rayleigh scattering) using high speed PMTs, XY galvano-mirrors and an automated microscope stage
  • 2D / 3D Raman imaging of a sample surface using XY galvano-mirror / Z-piezo scanners
  • Automatic spectral calibration


Configuration

The most complete configuration corresponds to the models Confotec™ MR350-SRMSp, Confotec™ MR520-SRMSp, Confotec™ MR750-SRMSp, comprising:

  • microscope with an automated stage
  • Raman module integrated in the optical microscope
  • two automatically switching lasers: a built-in laser (473 or 532 nm), and an external one (633 or 785 nm)
  • 350, 520 or 750 mm focal length Imaging monochromator-spectrograph with an automated 4-position grating turret
  • digital color CCD camera for spectral measurements with Peltier cooling
  • high speed PMT unit for Raman imaging (3 sec / frame, 1001 x 1001 points)
  • X-Y galvano-mirror scanner
  • Z-piezo scanner
  • reflected unit with a high speed detection system for Rayleigh imaging (3 sec / frame, 1001 x 1001 points)



  • Reflected Unit for high speed imaging using Rayleigh scattering from a sample (3 sec / frame, 1001 x 1001 points)

 Spatil resolution



 Laser

 Objective lens:

magnification and numerical aperture NA

 Lateral resolution  (XY)

 Axial resolution (Z)

 473 nm?



 100x, NA = 0.95?



 390 nm

620 nm

 532 nm??



 100x, NA = 0.95?



 440 nm

 620 nm

 633 nm??



 100x, NA = 0.95?



 520 nm

 730 nm

 785 nm

 100x, NA = 0.95?



 650 nm

 910 nm

?

 Spectral charecteristics

 Spectral range for Raman spectra detection:

 from 60 cm-1 to 11600 cm-1

 (depends on  the laser excitation wavelength)

 Spectral resolution:

 0.9 cm-1 (Echelle, 75 l/mm)?





 Scanning?



 Model?

   Scanning modes?

 Confotec™  MR350-SRMSp


 Confotec™  MR520-SRMSp

 Confotec™  MR750-SRMSp





  • 2D / 3D Raman mapping of a sample with full spectra detected at each point using a high speed digital CCD and XY galvano-mirror / Z-piezo scanners
  • high speed 2D / 3D Raman imaging (3 sec / frame, 1001 x 1001 points) using a spectral PMT and XY galvano-mirror / Z-piezo scanners
  • high speed 2D / 3D Rayleigh imaging (3 sec / frame, 1001 x 1001 points) using a Reflected unit and XY galvano-mirror / Z-piezo scanners
  • high speed and high spatial resolution panoramic imaging (Raman and Rayleigh scattering) using high speed PMTs, XY galvano-mirrors and an automated microscope stage





 Confotec™  MR350-SRSp


 Confotec™  MR520-SRSp

 Confotec™  MR750-SRSp



  • 2D / 3D Raman mapping of a sample with full spectra detected at each point using a high speed digital CCD and XY galvano-mirror / Z-piezo scanners
  • high speed 2D / 3D Raman imaging (3 sec / frame, 1001 x 1001 points) using a spectral PMT and XY galvano-mirror / Z-piezo scanners
  • high speed 2D / 3D Rayleigh imaging (3 sec / frame, 1001 x 1001 points) using a Reflected unit and XY galvano-mirror / Z-piezo scanners

 Confotec™  MR350-SRM


 Confotec™
 MR520-SRM

 Confotec™  MR750-SRM?





  • 2D / 3D Raman mapping of a sample  with full spectra detected  at each point using a high speed digital CCD and XY galvano-mirror / Z-piezo scanners
  • high speed 2D / 3D Rayleigh imaging (3 sec / frame, 1001 x 1001 points) using a Reflected unit and XY galvano-mirror / Z-piezo scanners
  • high speed and high spatial resolution panoramic Rayleigh scattering imaging using a Reflected unit, XY galvano-mirrors and an automated microscope stage



 Confotec™  MR350-SR


 Confotec™  MR520-SR

 Confotec™  MR750-SR



  • 2D / 3D Raman mapping of a sample  with full spectra detected at each point using a high speed digital CCD and XY galvano-mirror / Z-piezo scanners
  • high speed 2D / 3D Rayleigh imaging (3 sec / frame, 1001 x 1001 points) using a Reflected unit and XY galvano-mirror / Z-piezo scanners





 Confotec™

 MR350-S

 Confotec™
 MR520-S

 Confotec™

 MR750-S



  • 2D / 3D Raman mapping of a sample  with full spectra detected at each point using a high speed digital CCD and XY galvano-mirror / Z-piezo scanners







 microscope

 Type, model:

 Upright Nikon Ni-U

 Objective lenses:

 100х NA-0.95, 40х NA-0.75, 20х NA-0.50 and other

 Eyepieces:

 10x, 12.5x, 15x

 * Motorized stage:



 - travel range XY:

 X=114 mm, Y=75 mm?



 - position repeatability:

 < 0.5 μm?



 - metrical accuracy:

 0.06 μm / 1 mm?





 - minimal step:

 0.02 μm?



 Manual focusing along Z:



 - travel range:

 10mm



 - focusing mechanism sensitivity:

 0.1 mm/turn

 **Z-scanner:



 - objective lens travel range

 80 μm?



 - minimal step:

 50 nm?



 - repeatability:

 < 6 nm ?



 High-resolution digital camera:



 With Peltier cooling



 - type:

 Digital color CCD camera

 - sensor:

 4/3", 2048 x 2048 pixels

 - cooling:

 Peltier cooling

 (the temperature of 20 °C below the ambient temperature)

 - pixel size:

 7.4 x 7.4 μм

 - ADC:

 14 bit, 16 frames / sec

 Without cooling



 - type:

 Digital color CCD camera

 - sensor:

 1/2", 2048 x 1536 pixels

 - pixel size:

 3.2 x 3.2 μм

 - ADC:

 10 bit, 12 frames / sec

 Laser light input:

 Three-position automatic turret

  * for SRMSp and SRM configurations?







 Raman optical unit

 Optimized optics for the spectral range:

 VIS and NIR (400-1100 nm)

 Laser radiation delivery:

 each of the built-in lasers ? direct input;

 external lasers: 633 nm ? fiber input,

 785 nm ? direct input

 Beam expander:

 Magnification factor 2х ? 5х?



 Edge filters unit:

 Monostatic unit with two Edge filters,  manual change

 Confocal pinhole:

 Optical fiber Ø 50 μm

 Laser beam attenuator:

 continuously Variable Neutral Density Filter (VND),

 optical density range of 0 - 3







 Imaging monochromator-spectrograph



 Confotec™  MR350?



 Confotec   MR520?



 Confotec   MR750?



 Monochromator-spectrograph model:?



 MS3504i?



 MS5204i?



 MS7504i?



 Optical scheme:

 Czerny-Turner

 Czerny-Turner

 Czerny-Turner

 Ports:

 1 input, 2 output

 1 input, 2 output

 1 input, 2 output

 Focal length (output):

 350

 520

 750

 F/number (entrance):

 1 / 3.8

 1 / 5.4

 1 / 8.9

 Horizontal magnification:

 1.09

 1.09

 1.05

 Vertical magnification:

 1.49

 1.29

 1.05

 Vertical spatial resolution (astigmatism)

 < 15 μm

 < 15 μm

 < 15 μm

 Reciprocal linear dispersion:

 *2.37 nm/mm

 *1.50 nm/mm

 *1.02 nm/mm

 Spectral resolution:

 *0.07 nm

 **0.007

 (0.25 cm-1) nm?



 *0.02 nm

 Wavelength accuracy:

 *±0.125 nm

 *±0.05 nm

 *±0.05 nm

 Repeatability:

 *± 0.03 nm

 *±0.008 nm

 *±0.006 nm

 Grating mounting:

 Automated

 4-grating turret

 Automated

 4-grating turret

 Automated

 4-grating turret

 Grating wavelength repeatability:

 *± 0.03 nm

 *±0.008 nm

 *±0.006 nm

 Grating vertical image repeatability:

 ±50 μm

 ±50 μm

 ±50 μm

 *  with 1200 l/mm grating and  15 ?m slit at  546 nm

** with Echele grating (75 l / mm) and 15 ?m slit at 546 nm, order 44



 Imaging monochromator-spectrograph MS 3504i



 Laser wave-

 length, nm









 Grating, l/mm



 300

600

 1200

1800

Spectral range for Raman detection, cm-1

 473

0-12000

0-9400

 532

 0-9700

0-7000

 633

0-6700

0-4000

 785

0-3600

0-1000

 Maximal spectral range detected

 with CCD

 (2048x122 pixels, 12 μм pixel size), см-1

 473

7000

4210

2310

1550

 532

5700

3400

1840

1210

 633

4280

2470

1300

820

 785

2930

1650

830

480

 Spectral resolution

 with CCD

 (12 μм pixel size, 14 μм entrance slit), см-1

 473

12.850

6.440

3.185

2.050

 532

10.165

5.090

2.505

1.590

 633

7.190

3.595

1.745

1.070

 785

4.675

2.330

1.100

0.620





 Imaging monochromator-spectrograph MS 5204i



 Laser wave-

 length, nm









 Grating, l/mm



 300

600

 1800

75/Echelle

Spectral range for Raman detection, cm-1

 473

0-12000

 0-11000

 0-12000

 532

 0-9700

0-8700

0-9700

 633

 0-6700

0-5800

0-6700

 785

 0-3600

0.2700

0.3600

 Maximal spectral range detected



 with CCD

 (2048x122 pixels, 12 μм pixel size), см-1

 473

6900

3510

1100

275

 532

5500

2760

850

225

 633

3910

1950

570

210

 785

2540

1260

330

160



Spectral resolution

 with CCD

 (12 μм pixel size, 14 μм entrance slit), см-1

 473

6.150

3.080

0.975

0.250

 532

4.865

2.430

0.755

0.230

 633

3.440

1.715

0.505

0.190

 785

2.235

1.110

0.295

0.145











 Imaging monochromator-spectrograph MS 7504i



 Laser wave-

 length, nm









 Grating, l/mm



 300

600

 1200

1800

Spectral range for Raman detection, cm-1

 473

0-12000

0-9300

 532

 0-9700

0-6900

 633

0-6700

0-3900

 785

0-3600

0-900

 Maximal spectral range detected



 with CCD

 (2048x122 pixels, 12 μм pixel size), см-1

 473

3910

2130

1070

680

 532

 3150

1690

840

520

 633

 2280

1200

580

340

 785

 1520

780

360

185

 Spectral resolution

 with CCD

 (12 μм pixel size, 14 μм entrance slit), см-1

 473

 3.785

1.915

 0.920

0.570

 532

3.060

 1.510

0.715

0.435

 633

 2.160

 1.060

 0.490

0.285

 785

 1.400

 0.680

 0.305

0.160



 Digital spectral CCD camera

 Sensor type:

 back-thinned CCD, 2048 x 122 pixels

 Pixel size:

 12 x 12 μm

 Active area size:

 24.576 x 1.464 mm (W x H)

 Wavelength range:

 from 200 to 1100 nm

 Cooling with temperature stabilization:

 two stage Peltier cooling, up to  - 45 °С (water cooling)

 ADC:

 16 bit

 Sensitivity:

 1 photon / 1 count ADC (at 650 nm)

 Dynamic range:

 not less than 10 000

 Synchronizationя:

 internal, external

 Interface:

 Ethernet





 PMT for spectral measurements

 A Hamamatsu PMT unit (model  H7844 ) with the built-in one-stage  air cooled Peltier element is used for

 Ra-man spectra detection:

 Spectral range:

 185 - 900 nm

 Photocathode light sensitivity:

 450 μА/lm

 Anode light sensitivity:

 >5000 А/lm

 Anode dark current (in 3 minutes after start cooling):

 <0,05 nA

 Max. cooling temperature (ΔТ):

 20ºС



 Fast scanning unmit X.Y

 Scanners:

 galvanometer scanners with X, Y mirrors

 Scanning modes:

 raster high-speed and start-stop

 Positioning accuracy:

 < 30 nm

 Scanning area:

 100 um х 100 um (with 100Х objective lens)

 Scanning speed:

 3 s / frame 1001 х 1001 pixels



  Confocal Laser Microscope unit

 Pre-pinhole lens positioner:

 three-axis (X, Y, Z), manual control

 Confocal pinhole:

 unregulated,  Ø 30 μm

 Detector:

 Hamamatsu Photosensor module H6780-01



 532 nm built-in laser

 Type:

 ОЕМ Diode-pumped solid-state laser (DPSS)

 Wavelength:

 532 nm

 Output power:

 22±2 mW

 Output beam diameter:

 1.1 ± 0.1 mm

 Beam divergence:

 <0,6±0.1 mrad

 Spectral line width:

 0.00001 nm

 Coherence length:

 >50 m

 Transverse mode:

 TEMoo, M2 < 1.2 (1.05 typ.)?



 Polarization:

 >100:1, horizontal

 Long term power stability:

 <2% / 8 h.

 Warm-up time:

 <10 minutes





 473 nm built-in laser

 Type:

 ОЕМ Diode-pumped solid-state laser (DPSS)

 Wavelength:

 473 nm

 Output power:

 50 mW

 Output beam diameter:

 0.7 ± 0.05 mm



 Beam divergence:

 <1.2 mrad

 Spectral band width:

 <30 MHz

 Coherence length:

 >10 m

 Transverse mode:

 TEMoo, M2 < 1.1



 Polarization:

 >100:1, horizontal

 Long term power stability:

 <3% / 8 h.

 Beam point stability:

 <10 mrad

 Warm-up time:

 <10 minutes







 633 nm built-in laser

 Type:

 Helium-neon laser

 Wavelength:

 633,8 nm

 Output power:

 >10 mW

 Output beam diameter:

 0.65 mm

 Beam divergence:

 <1.24 mrad

 Spectral line width:

 341 MHz

 Mode composition:

 >90 % TEMoo

 Polarization:

 500:1

 Long term power stability:

 <5% / 8 h.

 Beam point stability:

 <0.03 mrad

 Warm-up time:

 <15 minutes







 785 nm built-in laser

 Type:

 Diode-pumped solid-state, SLM laser



 Wavelength:

 785 ± 0.2 nm

 Output power:

 100 mW

 Output beam diameter:

 1.5 mm

 Beam divergence:

 <1.0 mrad

 Spectral bandwidth:

 <1 MHz

 Beam quality:

 M2 < 1.65?



 Polarization:

 vertical ±5°

 Long term power stability:

 <1% / 8 h.

 Warm-up time:

 <10 minutes



 Models



 Confotec™

MR350/520/750-SRMSp

 Confotec™

MR350/520/750-SRM

 Confotec™

MR350/520/750-SRSp



 Confotec™

MR350/520/750-SR

 Confotec™

MR350/520/750-S



 Mapping?



 3 D (X Y Z)

 3 D (X Y Z)

 3 D (X Y Z)

 3 D (X Y Z)

 3 D (X Y Z)

 Scanning

 XY galvano +

motorized stage,

Z piezo

 XY galvano +

motorized stage,

Z piezo

 XY galvano,

Z piezo

 XY galvano,

Z piezo

 XY galvano,

Z piezo

 Fast Scanning for

 Confocal Raman  imaging

 Yes



 Yes





 Fast Scanning for

 Confocal laser imaging

 Yes

 Yes

 Yes

 Yes



 Data:

 2D, 3D

 2D, 3D

 2D, 3D

 2D, 3D

 2D, 3D

 Microscope?



 upright

 Color video CCD:

 Yes

 Raman Optical Unit?



 Location:

 integration with an optical microscope

 Optical alignment:

 no need

 Rayleigh rejection filters

 two edge filters, manually replacing

 Imaging monochromator-spectrograph ?



 Focal length:

 350/520/750 mm

 Exit port:

 2

 Exit port selection:

 automated exit mirror

 Grating:

 4

 Grating mounting:

 automated 4-grating turret

 Light input:

 one-channel optical fiber

 Digital spectral CCD camera?



 Number of pixels:

 2048 x 122

 Pixel size:

 12 x 12 ?м

 Cooling with temperature  stabilization:

 two-stage Peltier cooling with temperature stabilization, up to   - 45°С (water cooling)

 Excitation lasers (1 built-in and 1 external)

 Built-in laser?





 Wavelength:

 473 nm or 532 nm

 Light input:

 direct

 External laser?





 Wavelength:

 633 nm or 785 nm

 Light input:

 633 nm ? fiber, 785 nm ? direct

 Laser beam diameter  control?



 Zoom beam expander, manual

 Laser power control?



 continuous VND (OD0-3), motorized

 Confocal pinhole?





 Confocal Raman imaging:

 fiber Ø 50 μм

 Confocal laser imaging:

 fixed Ø 30 μм

 fixed Ø 30 μм

 fixed Ø 30 μм

 fixed Ø 30 μм



 Reflected Unit?



 Yes

 Yes

 Yes

 Yes



 Built-in calibration lamp?



 Yes

 Built-in calibration lamp?



 Yes



 Yes





 Motorized microscope  stage

 Yes

 Yes














































상품 정보 고시

품명 series MR350, MR520, MR750
모델명 series MR350, MR520, MR750
법에 의한 인증·허가 등을 받았음을 확인할 수 있는 경우 그에 대한 사항 상품페이지 참고
제조국 또는 원산지 Belarus
제조자 SOL instruments Ltd.
A/S 책임자와 전화번호 또는 소비자상담 관련 전화번호 02-355-5963

사용후기

등록된 사용후기

사용후기가 없습니다.

상품문의

등록된 상품문의

상품문의가 없습니다.

배송정보

배송 안내 입력전입니다.

교환/반품

교환/반품 안내 입력전입니다.

관련상품

등록된 상품이 없습니다.

회사명 매직트리 주소 경기도 하남시 조정대로45, 미사센텀비즈 F315호
사업자 등록번호 653-29-00047 대표 김 식 전화 02-355-5963 팩스 02-355-5962
통신판매업신고번호 개인정보관리책임자 ebiz@magictree.kr
Copyright © 2001-2013 매직트리. All Rights Reserved.
