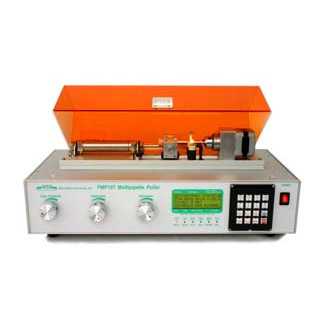

PMP-107 Micropipette Puller



  • Automatic Single to 7-Barrel Pipette Puller
  • Exclusive Optical-Digital Ruler Measurement
  • Computerize Real-Time Feedback Heater Control
  • Programmable and Savable Sequences for Creation and Reproduction
  • Manufacture Preset Programs for Single, 3, 4 and 7-Barrel Micropipette Pulling
  • Pneumatic Pulling Force and Compact Size
  • Super Length Multipipette and Electrode Pulling Model



Automatic Single to 7-Barrel Pipette Puller

PMP-107L: Extra length pull up to 120 mm for the taper and tip. With just pressing one key, an one to 7-barrel pipette

can be successfully pulled by the PMP-107 Programmable Multipipette puller. Equipped with a microcomputer, pneumatic

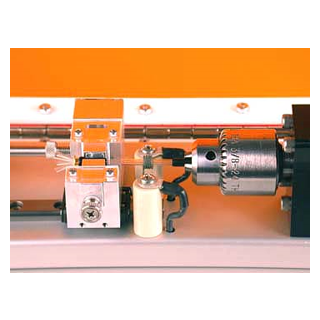

pulling arm, pneumatic rotator, optical-digital ruler and a new designed clamp, the PMP-107 can automatically heat,

twist and pull a multibarrel pipette. There is no need for any manual rotation or any inconsistent timing interrupt control.

The whole pulling processing is programmable and under control of a preset sequence. The PMP-107 is a new

upgrade model from the PMP-100 multipipette puller. Many new features have been added to the PMP-107:

The rotation (twist) speed is adjustable. Sequences are easy to copy and modify. Rotation and

pulling can act simultaneously while pulling distance is adjustable, which can twist a multipipette with adjustable spirality.



Exclusive Optical-Digital Ruler Measurement

There is an exclusive optical-digital ruler in the PMP-107 to perform precise taper length setting, real-time measurement

and tip sensing. With this feature, a user can easily handle taper and tip pulling.



Computerize Real-Time Feedback Heater Control

In the PMP-107, there is an advanced microcontroller to perform real-time heater monitoring and controlling.

If a heating level is selected and preset, the microcontroller will measure the actual heating power during heating

power on. The measurement will be real-time displayed and feedback to the control unit to match the set point dynamically.

As a result, the PMP-107 always provides precise heating power, despite of many times of pipette

pulling or thermal/electrical characteristic changing. Under a microcomputer controlling, the heater is smart and reliable.



Programmable and Savable Sequences for Creation and Reproduction

There are 25 user programmable and savable pulling sequences with maximum 18 steps in each sequence.

Users can easily program different taper length, tip shape for single to 7-barrel pipettes. Time number, heat level,

heat control and action parameters can be individually set in each step. After a special sequence setting up,

a multibarrel micropipette will be automatically produced by just pressing the Start button.



Manufacture Preset Programs for 4 and 7-Barrel Micropipette Pulling

Every PMP-107 will be well tested and installed sample pulling programs for 4 and 7-barrel multipipettes.

A new user will easily select the right program or just change a few step parameters to fit their special need.

The preset programs are convenient and important, not only because they can pull the 4 and 7-barrel pipettes

which are supplied by the manufacture, but also as convenient copy templets to make other programs

with only minor parameter change for other applications. The PMP-107 has an easy copy program function.



Pneumatic Pulling Force and Compact Size

Comparing with other pipette puller using gravity or magnetic field as pulling force, the PMP-107 applies precise

controlled pneumatic pressure as the pulling force, which gives more controllable, even and consistent

dragging characteristics. Within a very compact size, the PMP-107 can precisely and automatically perform

twisting and multiparameter multi-pulling without inconsistent manual interrupt. A precision micro-linear ball

bearing rail and advanced pneumatic components are used to provide no fault pulling movement.

A simple 4x4 keypad and full information display LCD let users control easily and read all pulling parameters directly,

which include sequences, steps, time, timing, heater level, heater control, tip length and actions.

With an intelligent PMP-107, pulling a multipipette is no longer an uncertainty of hand skill, but a reproducible

automatic processing.



 Multi-barrel pipette

 Single to 7-barrel

 Each barrel pipette O.D.

 1mm (2mm for single barrel)

 Pulling force

 Pneumatic

 Heater

 Nichrome coil or foil

 Heater control

 Microcontrollor

 Heating

 74 general heat levels (24-99), 64 automatic heat levels (45-98).

 Number of sequences

 25

 Steps of each sequence

 18

 Taper length setting

 0.5 - 20 mm (0.5-120 mm for PMP-107L)

 Pressure 1 regulator

 0.1 - 10 psi

 Pressure 2 regulator

 0.1 - 60 psi

 Cool air pressure

 1 - 30 psi, adjustable

 Rotation Control

 Turn speed adjustable

 Pressure gas input

 30 - 60 psi

 Actions

 Pull 1, Pull 2, Pull 2/Cool, Rotation, Rotation/pull Cool Air and Return.

 Display

 20x4 LCD

 Heater power output

 Optional

 Light power output

 Optional?



 Pressure air output

 Optional?



 Foot switch connector

 Optionaltwo (Heat Stop, Air Out)?



 Power output

 Heater supply, 12VAC

 Power input

 110 / 240 VAC

 Power consumption

 Maximum 150 watts
