Spotlight LEDs > Mightex

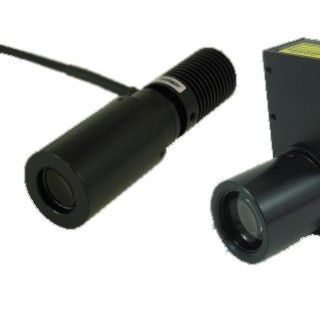

Mightex BLS-series precision LED spotlight employ the latest high-power LED technologies and a proprietary coupling optics to achieve the best beam uniformity. In conjunction with BioLED light source control modules, these LED sources can be used for a wide range of applications including optogenetics and other bio-photonics applications.

Features:

* Uniform illumination spot with a highly delineated edge

* High output power

* Multi-element aspherical optics

* Wide range of available wavelengths

* Adjustable focus

* Multiple mounting features for lab and OEM applications

* Integrated heatsink

Type A/ Type B Part Number Type (A or B) 1 Wavelength (nm) Iop (mA) Vop (V) Typical Output Power (mW) 2 PLS-0340-030-02-S A 340 500 4.3 11 PLS-0365-030-04-S A 365 1000 3.65 180 PLS-0365-030-13-S B 365 3500 3.85 720 PLS-0380-030-03-S A 380 1000 3.2 65 PLS-0385-030-04-S A 385 1000 3.65 250 PLS-0385-030-07-S B 385 500 15 300 PLS-0385-030-11-S B 385 700 15.5 375 PLS-0385-030-13-S B 385 3500 3.75 900 PLS-0390-030-03-S A 390 1000 3.1 140 PLS-0395-030-03-S A 395 1000 3.1 150 PLS-0400-030-S A 400 350 3.5 50 PLS-0400-030-03-S A 400 1000 3.1 150 PLS-0400-030-17-S B 400 1000 16.6 400 PLS-0405-030-03-S A 405 1000 3 180 PLS-0410-030-03-S A 410 1000 3 175 PLS-0415-030-03-S A 415 1000 3 120 PLS-0430-030-02-S A 430 500 3.8 100 PLS-0455-030-S A 455 1000 3.9 150 PLS-0470-030-S A 470 1000 3.9 110 PLS-0470-030-15-S B 470 1000 15 450 PLS-0471-030-02-S A 471 350 3 75 PLS-0490-030-01-S A 490 350 3.5 80 PLS-0505-030-S A 505 1000 3.9 65 PLS-0505-030-12-S B 505 1000 12.2 185 PLS-0530-030-S A 530 1000 3.9 50 PLS-0530-030-15-S B 530 1000 15 200 PLS-0540-030-14-S B 540 broadband 3000 4.6 260 PLS-0560-030-02-S A 560 broadband 700 2.9 95 PLS-0590-030-S A 590 1000 3.9 35 PLS-0590-030-05-S B 590 500 9.5 130 PLS-0617-030-S A 617 1000 3.9 80 PLS-0617-030-10-S B 617 1000 10.8 200 PLS-0625-030-S A 625 1000 3.9 90 PLS-0625-030-07-S B 625 700 9.6 155 PLS-0656-030-S A 656 1000 3.9 180 PLS-0656-030-07-S B 656 700 9.6 420 PLS-0680-030-S A 680 600 2.7 20 PLS-0700-030-01-S A 700 500 2.1 27 PLS-0720-030-01-S A 720 600 2.2 39 PLS-0740-030-S A 740 1000 2.5 100 PLS-0740-030-10-S B 740 1000 9.5 300 PLS-0780-030-S A 780 800 2.5 60 PLS-0810-030-02-S A 810 800 2.2 65 PLS-0850-030-S A 850 1000 2.1 85 PLS-0870-030-01-S A 870 700 1.9 60 PLS-0910-030-02-S A 910 1000 1.9 60 PLS-0940-030-S A 940 700 1.5 50 PLS-0980-030-01-S A 980 500 1.4 16 PLS-6500-030-S A Glacier white 6,500K 1000 3.6 100 PLS-6500-030-15-S B Glacier white 6,500K 1000 15 400 PLS-5500-030-S A Cool white 5,500K 1000 3.9 85 PLS-5500-030-12-S B Cool white 5,500K 1000 12 400 PLS-4000-030-S A Warm white 4,000K 1000 3.9 85 PLS-3000-030-S A Warm white 3,000K 1000 2.8 70 PLS-3000-030-12-S B Warm white 3,000K 1000 12 320 Type H Part Number Wavelength (nm) Iop(A) Vop(V) Typical Output Power (mW) 1 PLS-0365-030-48-S 365 12 3.9 1100 PLS-0405-030-50-S 405 13 3.8 1350 PLS-0470-030-50-S 470 13 3.8 1850 PLS-0525-030-60-S 525 13 4.6 715 PLS-0560-030-68-S 560 broadband 18 3.8 1800 PLS-0625-030-38-S 625 13 2.9 605 PLS-0730-030-77-S 730 18 5.9 2100 PLS-6500-030-33-S Glacier white 6,500K 9 3.7 1100 PLS-6500-030-65-S Glacier white 6,500K 18 5.9 2000
