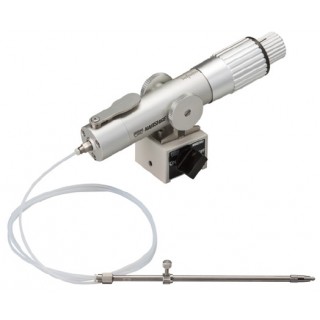

IM-11-2 Pneumatic Microinjector > Narishige

 1) Easy-to-insert/remove tubing connection

The fitting mechanism permits one-touch simple insertion and removal of the tubing, thereby making regular care so much easier such as removal of fragments of broken pipettes. Incorporates a mechanism that prevents a kink in the tubing from being transmitted to the injection holder, thereby enabling delicate adjustment of the rotation direction of the needle tip.

 2) Pressure release with push-button ease

Outfitted with a one-touch pressure relief valve that allows pressure to escape. Making it easy to adjust interfacial surface in the pipette or the volume of the syringe.

 3) Responsiveness adjustable to your preference

Pressure changeability in the pipette tip can be adjusted by changing the volume of the syringe, thereby adjusting operational responsiveness according to your preference.

 4) Wide range of movement/pressure characteristics

Through the adoption of a long syringe and a coarse-fine coaxial control knob, the amount of pressure change per knob rotation has increased by approx. 25 times, which helps achieve a wide range of pressure changeability.

 HI01PK01

 Silicone Rubber Gasket

 For 2.5mm (10pcs)

 HI-9

 Injection Holder

 for Pneumatic Injector

 CT-1-1.5

 Tubing for ø2mm

 ø2mm × 1.5m

 CT-4

 Tubing for ø2mm

 ø2mm × 1.2m

 IMO10

 O-ring

 3pcs
